Mobile SDK Core

This is more of a library than an SDK. It's used to encrypt card details into seToken, which can be safely passed and saved to any system (for example, merchant server). This is a good solution for merchants who want maximum flexibility or don't want to deal with card details on their servers.

Payment methods supported by this SDK:

SDK Core payment process

Web View for 3DS

The diagram below shows the SDK Core payment process with 3DS redirect via Web View.

1. Client creates an order
2. Mobile Server registers that order in Payment Gateway via register.do. Use the returnUrl parameter as a marker to close Web View after redirect from ACS on Step 14.
3. Mobile Server receives a unique order number mdOrder in response.
4. Client fills in payment data in Mobile App.

5. Mobile App calls SDK to create seToken (secure token). (Android: sdkCore.generateWithCard; iOS: CKCToken.generateWithCard).

   The public key required in the corresponding method should be taken from the online resource https://uat.dskbank.bg/payment/se/keys.do. If multiple keys are available at this link, the first key should be used. (Keep in mind that different keys are used for test and production environments.)

6. Mobile App sends the seToken to Mobile Server.

7. Mobile Server uses this seToken to make a payment via paymentorder.do.

   • Use seToken instead of pan, cvc and expiry date.
   • Don't forget to specify the cardholder name in the TEXT field. If you don't collect the cardholder name, just send the value CARDHOLDER.

8. Mobile Server receives a response without ACS redirect. This means that the payment is completed and we need to go to Step 16.

9. Mobile Server receives a response with ACS redirect.

10. Mobile App opens Web View with ACS redirect data.

11. Client enters their one-time password in the ACS form.

12. ACS redirects the client to Payment Gateway.

13. Payment Gateway makes the payment.

14. Payment Gateway redirects the client to returnUrl, which can be used as a marker to close Web View.

15. Mobile App closes Web View.

16. Payment Gateway sends a callback notification to the merchant server if it's configured for the merchant.

17. Mobile Server checks the final payment status via getOrderStatusExtended.do.

18. Mobile App shows the payment result to the client.

IOS

iOS Integration

SDKCore.framework integration

You can integrate SDKCore.framework by adding it manually.

SDKCore.framework

• Download the latest version of the framework here.

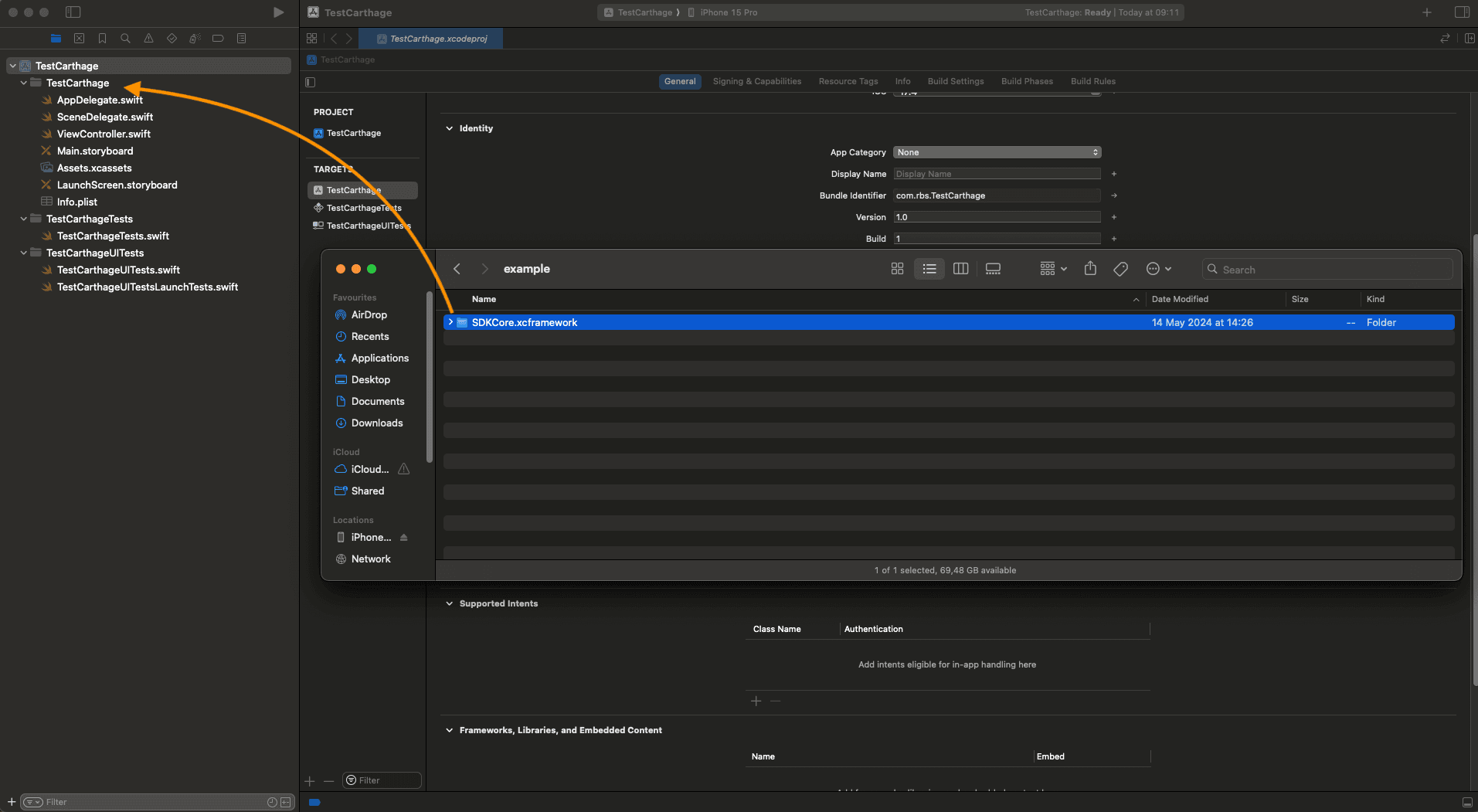

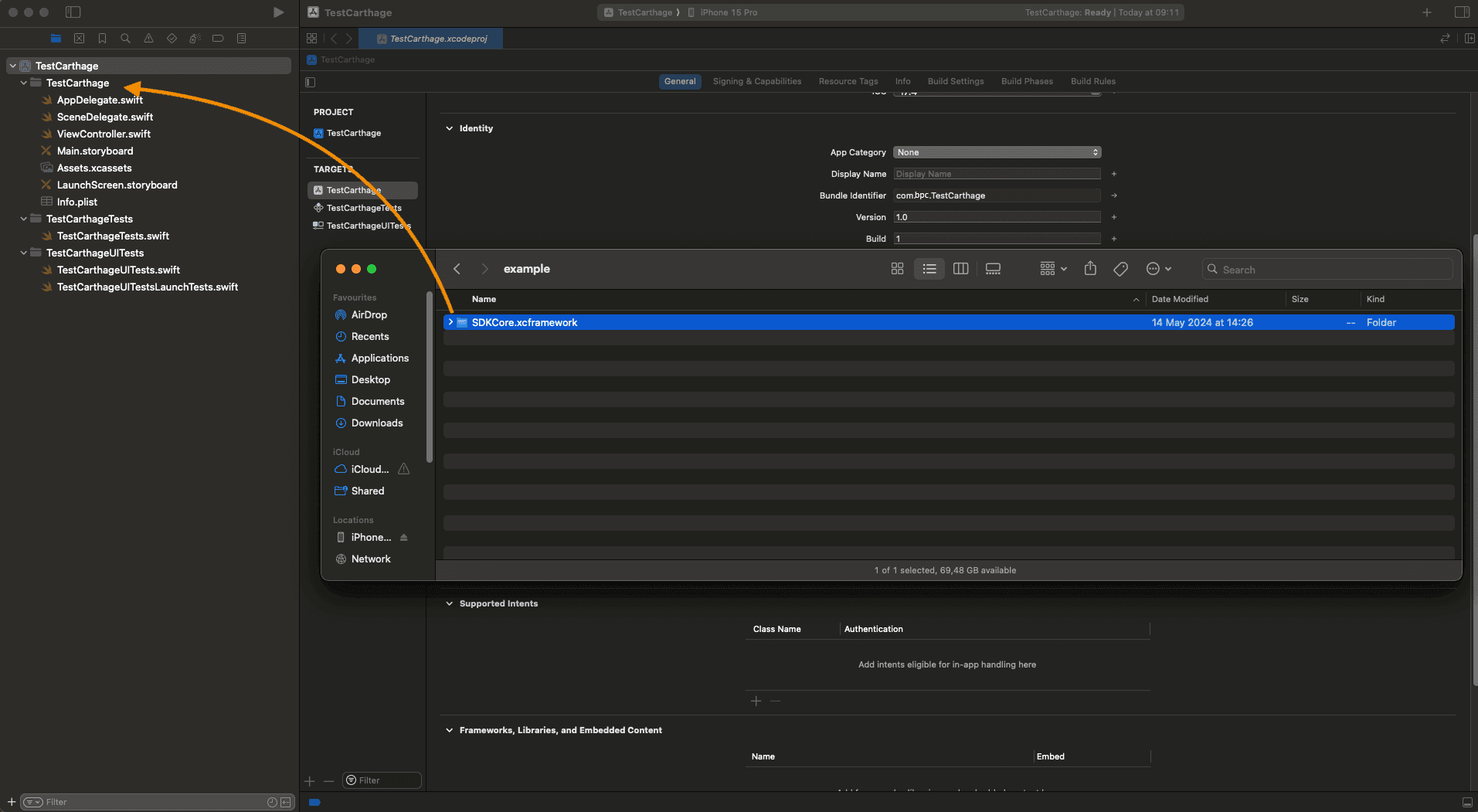

• Take the SDKCore.framework file and add it to the project folder.

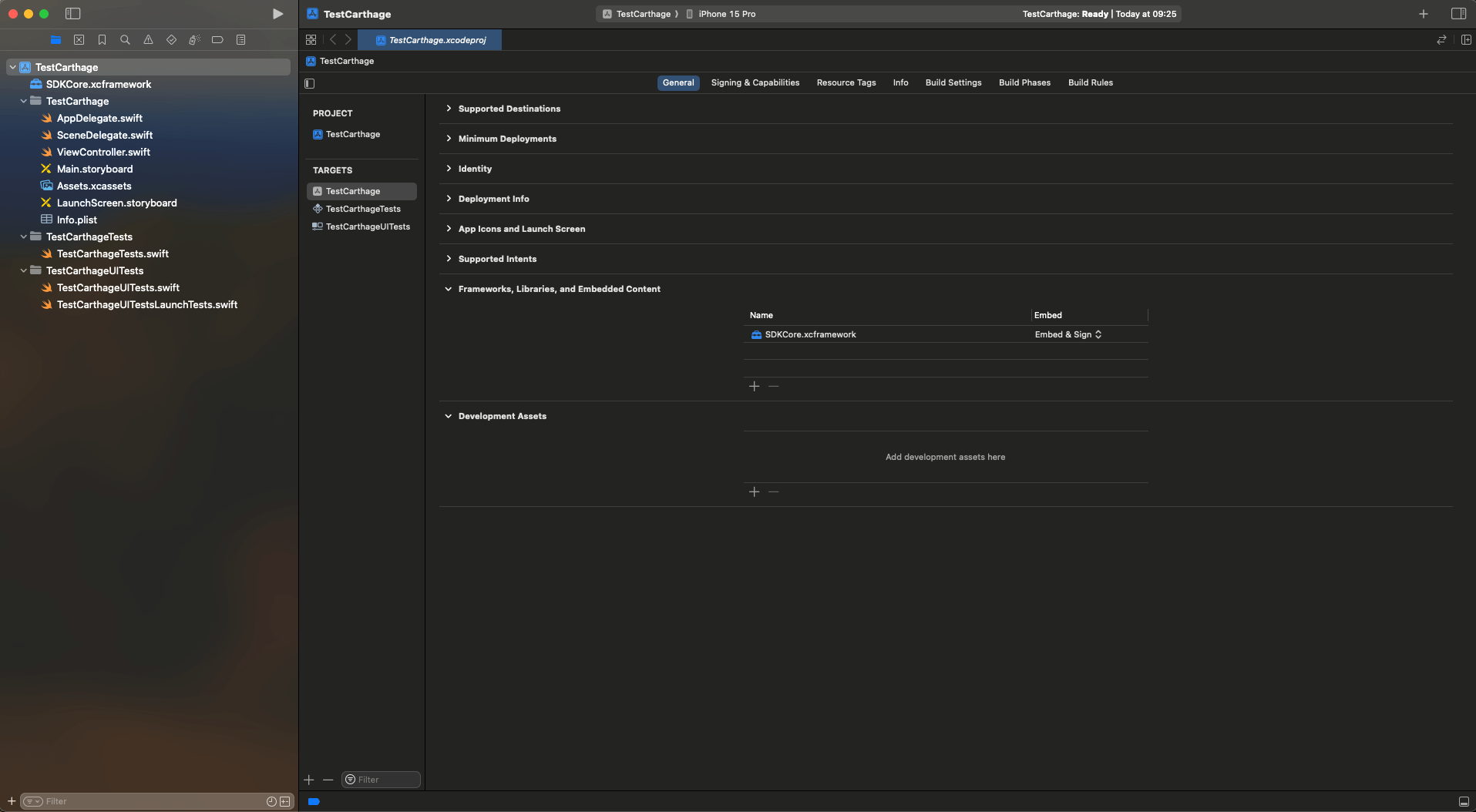

• Open Targets -> General -> Frameworks, Libraries, and Embedded Content. For SDKCore.framework, in the Embed column, change Do not Embed to Embed & Sign.

Once done, import the framework in the ViewController.swift file.

//ViewController.swift
...
import SDKCore
...

How to work with API V1

External dependencies

For generation of the token, it is necessary to set the public key.

let publicKey: String =
      "-----BEGIN PUBLIC KEY-----MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAoIITqh9xlGx4tWA+aucb0V0YuFC9aXzJb0epdioSkq3qzNdRSZIxe/dHqcbMN2SyhzvN6MRVl3xyjGAV+lwk8poD4BRW3VwPUkT8xG/P/YLzi5N8lY6ILlfw6WCtRPK5bKGGnERcX5dqL60LhOPRDSYT5NHbbp/J2eFWyLigdU9Sq7jvz9ixOLh6xD7pgNgHtnOJ3Cw0Gqy03r3+m3+CBZwrzcp7ZFs41bit7/t1nIqgx78BCTPugap88Gs+8ZjdfDvuDM+/3EwwK0UVTj0SQOv0E5KcEHENL9QQg3ujmEi+zAavulPqXH5907q21lwQeemzkTJH4o2RCCVeYO+YrQIDAQAB-----END PUBLIC KEY-----"

Token generation method

let sdkCore = SdkCore()

let cardParams = CardParams(
     pan: "4111111111111111",
     cvc: "123",
     expiryMMYY: "12/28",
     cardholder: "TEST CARDHOLDER",
     mdOrder: "mdOrder",
     pubKey: publicKey
)

let cardParamsConfig = SDKCoreConfig(
    paymentMethodParams: .cardParams(params: cardParams)
)
let tokenResult = sdkCore.generateWithConfig(config: cardParamsConfig)

let bindignParams = BindingParams(
    pubKey: publicKey,
    bindingId: "das",
    cvc: "123",
    mdOrder: "mdOrder"
)
let bindingParamsConfig = SDKCoreConfig(
    paymentMethodParams: .bindingParams(params: bindignParams)
)
let tokenResult = sdkCore.generateWithConfig(config: bindingParamsConfig)

Models

CardParams

BindingParams

Field validation errors

Android

Android Integration

Connecting to a Gradle project by adding .aar library files

You must add the sdk_core-release.aar library file to the libs folder, then specify the dependency of the added library.

build.gradle.kts

allprojects {
    repositories {
        // ...
        flatDir {
            dirs("libs")
        }
    }
}

dependencies {
    // dependency is mandatory to add
    implementation(group = "", name = "sdk_core-release", ext = "aar")
}

build.gradle

allprojects {
    repositories {
        // ...
        flatDir {
            dirs 'libs'
        }
    }
}

dependencies {
    // dependency is mandatory to add
    implementation(group: '', name: 'sdk_core-release', ext: 'aar')
}

Android Configuration

Logging

Internal processes are logged with the SDK-Core tag. You can also log your processes.

Logging is available through the Logger object.

• To add log- interfaces, you should call the Logger-method addLogInterface().

  Example of logging into LogCat:

...
    Logger.addLogInterface(object : LogInterface {
        override fun log(classMethod: Class<Any>, tag: String, message: String, exception: Exception?) {
                Log.i(tag, "$classMethod: $message", exception)
            }
        })
...

The default tag is SDK-Core. You can set your own one if you like.

• To log your own events, you should call Logger-method log().

  Example:

...
     Logger.log(this.javaClass, "MyTag", "My process...", null)
...

Example Kotlin_core (no GUI)

Example of cryptogram formation

import net.payrdr.mobile.payment.sdk.core.SDKCore
import net.payrdr.mobile.payment.sdk.core.TokenResult
import net.payrdr.mobile.payment.sdk.core.model.BindingParams
import net.payrdr.mobile.payment.sdk.core.model.CardParams
import net.payrdr.mobile.payment.sdk.core.validation.BaseValidator
import net.payrdr.mobile.payment.sdk.core.validation.CardCodeValidator
import net.payrdr.mobile.payment.sdk.core.validation.CardExpiryValidator
import net.payrdr.mobile.payment.sdk.core.validation.CardHolderValidator
import net.payrdr.mobile.payment.sdk.core.validation.CardNumberValidator
import net.payrdr.mobile.payment.sdk.core.validation.OrderNumberValidator

class MainActivity : AppCompatActivity() {
    // initialization of validators for card information entry fields
    private val cardNumberValidator by lazy { CardNumberValidator(this) }
    private val cardExpiryValidator by lazy { CardExpiryValidator(this) }
    private val cardCodeValidator by lazy { CardCodeValidator(this) }
    private val cardHolderValidator by lazy { CardHolderValidator(this) }
    private val orderNumberValidator by lazy { OrderNumberValidator(this) }
    private val sdkCore by lazy { SDKCore(context = this) }

    override fun onCreate(savedInstanceState: Bundle?) {
        // installation of validators on the card information entry fields
        cardNumberInput.setupValidator(cardNumberValidator)
        cardExpiryInput.setupValidator(cardExpiryValidator)
        cardCodeInput.setupValidator(cardCodeValidator)
        cardHolderInput.setupValidator(cardHolderValidator)
        mdOrderInput.setupValidator(orderNumberValidator)

        // creation of an object and initialization of fields for a new card
        val params = NewPaymentMethodCardParams(
            pan = cardNumberInput.text.toString(),
            cvc = cardCodeInput.text.toString(),
            expiryMMYY = cardExpiryInput.text.toString(),
            cardHolder = cardHolderInput.text.toString(),
            pubKey = pubKeyInput.text.toString()
        )
        // method call to get the cryptogram for a new card
        sdkCore.generateWithConfig(SDKCoreConfig(params))

        // Creation of an object and initialization of fields for the linked card
        val params = NewPaymentMethodStoredCardParams(
            storedPaymentId = "storedPaymentMethodId",
            cvc = "123",
            pubKey = pubKeyInput.text.toString()
        )
        // method call to get the cryptogram for the linked card
        sdkCore.generateWithConfig(SDKCoreConfig(params))
    }
}

Models

NewPaymentMethodCardParams

NewPaymentMethodStoredCardParams

TokenResult

Field validation errors

How to work with API V1

External dependencies

For generation of the token, it is necessary to set the public key.

val publicKey: String =
    "-----BEGIN PUBLIC KEY-----MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAoIITqh9xlGx4tWA+aucb0V0YuFC9aXzJb0epdioSkq3qzNdRSZIxe/dHqcbMN2SyhzvN6MRVl3xyjGAV+lwk8poD4BRW3VwPUkT8xG/P/YLzi5N8lY6ILlfw6WCtRPK5bKGGnERcX5dqL60LhOPRDSYT5NHbbp/J2eFWyLigdU9Sq7jvz9ixOLh6xD7pgNgHtnOJ3Cw0Gqy03r3+m3+CBZwrzcp7ZFs41bit7/t1nIqgx78BCTPugap88Gs+8ZjdfDvuDM+/3EwwK0UVTj0SQOv0E5KcEHENL9QQg3ujmEi+zAavulPqXH5907q21lwQeemzkTJH4o2RCCVeYO+YrQIDAQAB-----END PUBLIC KEY-----"

Token generation method

// TokenResult with CardParams
val cardParams: CardParams = CardParams(
    mdOrder = "mdOrder",
    pan = "4111111111111111",
    cvc = "123",
    expiryMMYY = "12/28",
    cardHolder = "TEST CARDHOLDER",
    pubKey = "publicKey"
)
val tokenResult = sdkCore.generationWithConfig(paymentCardParams = cardParams)

// TokenResult with BindingParams
val bindingParams: BindingParams = BindingParams(
    mdOrder = "mdOrder",
    bindingID = "das",
    cvc = "123",
    pubKey = "publicKey"
)

val tokenResult = sdkCore.generationWithConfig(paymentCardParams = bindingParams)

Cross-platform frameworks

Mobile SDK Core is not limited to native applications: the SDK calls are forwarded to native code through a bridge that you declare on the application side.

React Native

To implement integration of Mobile SDK Core into a React Native application, you need to configure a bridge — a wrapper in Kotlin/Java or Swift/Objective-C that will accept calls from JavaScript and forward them to the native SDK code.

Bridges in React Native allow your JS code to call native library methods as easily as regular asynchronous functions: you declare a native module with methods that return results via a Promise, React Native automatically links these methods to JavaScript, and then you work with them in the app without deep platform API knowledge.

IOS

1. Integrate SDKCore into your project according to the iOS Integration section.

2. Verify that for the SDKCore.xcframework framework the Embed column has Embed & Sign selected.

3. Create a Swift module RadarSdkBridge.swift with the following content:

   import Foundation
   import React
   import SDKCore

   @objc(RadarSdk)
   class RadarSdkBridge: NSObject {
       private let sdkCore = SdkCore()

       @objc
       func generateNewCardToken(
           _ pan: String,
           cvc: String,
           expiryMMYY: String,
           cardHolder: String,
           mdOrder: String,
           pubKey: String,
           resolver resolve: RCTPromiseResolveBlock,
           rejecter reject: RCTPromiseRejectBlock
       ) {
           do {
               let params = CardParams(
                   pan: pan,
                   cvc: cvc,
                   expiryMMYY: expiryMMYY,
                   cardholder: cardHolder,
                   mdOrder: mdOrder,
                   pubKey: pubKey
               )
               let config = SDKCoreConfig(paymentMethodParams: .cardParams(params: params))
               let result = try sdkCore.generateWithConfig(config: config)
               resolve(result.token)
           } catch {
               reject("TOKEN_ERROR", error.localizedDescription, error)
           }
       }

       @objc
       func generateStoredCardToken(
           _ storedPaymentId: String,
           cvc: String,
           pubKey: String,
           mdOrder: String,
           resolver resolve: RCTPromiseResolveBlock,
           rejecter reject: RCTPromiseRejectBlock
       ) {
           do {
               let params = BindingParams(
                   pubKey: pubKey,
                   bindingId: storedPaymentId,
                   cvc: cvc,
                   mdOrder: mdOrder
               )
               let config = SDKCoreConfig(paymentMethodParams: .bindingParams(params: params))
               let result = try sdkCore.generateWithConfig(config: config)
               resolve(result.token)
           } catch {
               reject("TOKEN_ERROR", error.localizedDescription, error)
           }
       }

       @objc
       static func requiresMainQueueSetup() -> Bool {
           return false
       }
   }

4. Implement the Objective-C bridge in the RadarSdkBridge.m file:

   #import <React/RCTBridgeModule.h>

   @interface RCT_EXTERN_MODULE(RadarSdk, NSObject)

   RCT_EXTERN_METHOD(generateNewCardToken:
     (NSString *)pan
     cvc:(NSString *)cvc
     expiryMMYY:(NSString *)expiryMMYY
     cardHolder:(NSString *)cardHolder
     mdOrder:(NSString *)mdOrder
     pubKey:(NSString *)pubKey
     resolver:(RCTPromiseResolveBlock)resolve
     rejecter:(RCTPromiseRejectBlock)reject
   )

   RCT_EXTERN_METHOD(generateStoredCardToken:
     (NSString *)storedPaymentId
     cvc:(NSString *)cvc
     pubKey:(NSString *)pubKey
     mdOrder:(NSString *)mdOrder
     resolver:(RCTPromiseResolveBlock)resolve
     rejecter:(RCTPromiseRejectBlock)reject
   )

   @end

Android

1. Download sdk_core-release.aar and sdk_logs-release.aar and copy them into the android/app/libs/ folder according to the Android Integration section.

2. Add a flat repository and dependencies to the android/app/build.gradle file:

   android {
       // … rest of your project configuration …
   }

   repositories {
       flatDir {
           dirs 'libs'
       }
   }

   dependencies {
       // … other dependencies …
       implementation(name: 'sdk_core-release', ext: 'aar')
       implementation(name: 'sdk_logs-release', ext: 'aar')
   }

Native Module Implementation in Kotlin

1. Create the RadarSdkModule.kt file in the android/app/src/main/java/.../radar/ directory:

   package com.mobilesdkdemo.radar

   import com.facebook.react.bridge.Promise
   import com.facebook.react.bridge.ReactApplicationContext
   import com.facebook.react.bridge.ReactContextBaseJavaModule
   import com.facebook.react.bridge.ReactMethod
   import net.payrdr.mobile.payment.sdk.core.SDKCore
   import net.payrdr.mobile.payment.sdk.core.model.SDKCoreConfig
   import net.payrdr.mobile.payment.sdk.core.model.CardParams
   import net.payrdr.mobile.payment.sdk.core.model.BindingParams

   class RadarSdkModule(reactContext: ReactApplicationContext) : ReactContextBaseJavaModule(reactContext) {
       override fun getName(): String = "RadarSdk"

       private val sdkCore by lazy { SDKCore(context = reactApplicationContext) }

       @ReactMethod
       fun generateNewCardToken(
           pan: String,
           cvc: String,
           expiryMMYY: String,
           cardHolder: String,
           mdOrder: String,
           pubKey: String,
           promise: Promise
       ) {
           try {
               val params = CardParams(
                   pan = pan,
                   cvc = cvc,
                   expiryMMYY = expiryMMYY,
                   cardHolder = cardHolder,
                   mdOrder = mdOrder,
                   pubKey = pubKey
               )
               val config = SDKCoreConfig(paymentCardParams = params)
               val result = sdkCore.generateWithConfig(config)
               promise.resolve(result.token)
           } catch (e: Exception) {
               promise.reject("TOKEN_ERROR", e)
           }
       }

       @ReactMethod
       fun generateStoredCardToken(
           storedPaymentId: String,
           cvc: String,
           pubKey: String,
           mdOrder: String,
           promise: Promise
       ) {
           try {
               val params = BindingParams(
                   bindingID = storedPaymentId,
                   mdOrder = mdOrder,
                   cvc = cvc,
                   pubKey = pubKey
               )
               val config = SDKCoreConfig(paymentCardParams = params)
               val result = sdkCore.generateWithConfig(config)
               promise.resolve(result.token)
           } catch (e: Exception) {
               promise.reject("TOKEN_ERROR", e)
           }
       }
   }

2. Create the RadarSdkPackage.kt package in the same directory:

   package com.mobilesdkdemo.radar

   import com.facebook.react.ReactPackage
   import com.facebook.react.bridge.NativeModule
   import com.facebook.react.bridge.ReactApplicationContext
   import com.facebook.react.uimanager.ViewManager

   class RadarSdkPackage : ReactPackage {
       override fun createNativeModules(reactContext: ReactApplicationContext): List<NativeModule> =
           listOf(RadarSdkModule(reactContext))

       override fun createViewManagers(
           reactContext: ReactApplicationContext
       ): List<ViewManager<*, *>> = emptyList()
   }

3. Register the created package in MainApplication.kt:

   package com.mobilesdkdemo

   import android.app.Application
   import com.facebook.react.PackageList
   import com.facebook.react.ReactApplication
   import com.facebook.react.ReactNativeHost
   import com.facebook.react.ReactHost
   import com.facebook.react.defaults.DefaultNewArchitectureEntryPoint.load
   import com.facebook.react.defaults.DefaultReactNativeHost
   import com.facebook.soloader.SoLoader
   import com.mobilesdkdemo.radar.RadarSdkPackage

   class MainApplication : Application(), ReactApplication {

       override val reactNativeHost: ReactNativeHost =
           object : DefaultReactNativeHost(this) {
               override fun getPackages(): List<ReactPackage> =
                   PackageList(this).packages.apply {
                       add(RadarSdkPackage()) // Register the package
                   }

               override fun getJSMainModuleName(): String = "index"
               override fun getUseDeveloperSupport(): Boolean = BuildConfig.DEBUG
               override val isNewArchEnabled: Boolean = BuildConfig.IS_NEW_ARCHITECTURE_ENABLED
               override val isHermesEnabled: Boolean = BuildConfig.IS_HERMES_ENABLED
           }

       override val reactHost: ReactHost
           get() = getReactNativeHost(applicationContext, reactNativeHost)

       override fun onCreate() {
           super.onCreate()
           SoLoader.init(this, false)
           if (BuildConfig.IS_NEW_ARCHITECTURE_ENABLED) {
               load()
           }
       }
   }

Usage

Use the methods from JavaScript/TypeScript as follows:

import { NativeModules } from 'react-native';
const { RadarSdk } = NativeModules;

// Generate a token for a new card
const token = await RadarSdk.generateNewCardToken(
  '4111111111111111', // PAN
  '123',              // CVC
  '12/25',            // Expiry MM/YY
  'CARDHOLDER NAME',  // Cardholder name
  'mdOrder',          // Obtained when registering the order
  '-----BEGIN PUBLIC KEY-----...' // Public key from /payment/se/keys.do
);

// Generate a token for a stored card
const bindToken = await RadarSdk.generateStoredCardToken(
  'bindingId',        // Stored card ID
  '123',              // CVC
  '-----BEGIN PUBLIC KEY-----…', // Public key from /payment/se/keys.do
  'mdOrder'           // Obtained when registering the order
);

Demo Application

An example integration of Mobile SDK Core into a React Native application can be found on GitHub.

Flutter

To implement integration of Mobile SDK Core into a Flutter application, you need to configure a platform channel — the channel through which Dart code calls the native SDK methods on Android and iOS.

A platform channel links Dart and native code by channel name: you declare a MethodChannel with the same name on both sides, call a method from Dart and receive the result via a Future. The channel name is the only thing tying the two sides together, so a mismatch fails at runtime with a MissingPluginException rather than as a compilation error.

Arguments are passed as a Map<String, dynamic> and are decoded by key name on the native side. Only values the standard codec understands can cross the channel — primitives, lists and maps; SDK objects are built natively and are never sent across.

iOS

1. Integrate SDKCore into your project according to the iOS Integration section.

2. Make sure that Embed & Sign is selected in the Embed column for the SDKCore.xcframework framework. The framework inside the xcframework is a dynamic library: if it is only linked but not embedded, the project builds cleanly and the application crashes at launch.

3. Create the RadarSdkBridge.swift file in the Runner target:

   import Flutter
   import Foundation
   import SDKCore

   final class RadarSdkBridge: NSObject {
       static let channelName = "radar_sdk"

       private let channel: FlutterMethodChannel
       private let sdkCore = SdkCore()

       init(messenger: FlutterBinaryMessenger) {
           channel = FlutterMethodChannel(name: RadarSdkBridge.channelName, binaryMessenger: messenger)
           super.init()
           channel.setMethodCallHandler { [weak self] call, result in
               self?.handle(call, result: result)
           }
       }

       private func handle(_ call: FlutterMethodCall, result: @escaping FlutterResult) {
           switch call.method {
           case "generateNewCardToken":
               generateNewCardToken(call, result: result)
           case "generateStoredCardToken":
               generateStoredCardToken(call, result: result)
           default:
               result(FlutterMethodNotImplemented)
           }
       }

       private func generateNewCardToken(_ call: FlutterMethodCall, result: @escaping FlutterResult) {
           guard
               let args = call.arguments as? [String: Any],
               let pan = args["pan"] as? String,
               let cvc = args["cvc"] as? String,
               let expiryMMYY = args["expiryMMYY"] as? String,
               let cardHolder = args["cardHolder"] as? String,
               let mdOrder = args["mdOrder"] as? String,
               let pubKey = args["pubKey"] as? String
           else {
               result(FlutterError(code: "TOKEN_ERROR", message: "Invalid arguments", details: nil))
               return
           }

           do {
               let params = CardParams(
                   pan: pan,
                   cvc: cvc,
                   expiryMMYY: expiryMMYY,
                   cardholder: cardHolder,
                   mdOrder: mdOrder,
                   pubKey: pubKey
               )
               let config = SDKCoreConfig(paymentMethodParams: .cardParams(params: params))
               let tokenResult = try sdkCore.generateWithConfig(config: config)
               result(tokenResult.token)
           } catch {
               result(FlutterError(code: "TOKEN_ERROR", message: error.localizedDescription, details: nil))
           }
       }

       private func generateStoredCardToken(_ call: FlutterMethodCall, result: @escaping FlutterResult) {
           guard
               let args = call.arguments as? [String: Any],
               let storedPaymentId = args["storedPaymentId"] as? String,
               let cvc = args["cvc"] as? String,
               let pubKey = args["pubKey"] as? String,
               let mdOrder = args["mdOrder"] as? String
           else {
               result(FlutterError(code: "TOKEN_ERROR", message: "Invalid arguments", details: nil))
               return
           }

           do {
               let params = BindingParams(
                   pubKey: pubKey,
                   bindingId: storedPaymentId,
                   cvc: cvc,
                   mdOrder: mdOrder
               )
               let config = SDKCoreConfig(paymentMethodParams: .bindingParams(params: params))
               let tokenResult = try sdkCore.generateWithConfig(config: config)
               result(tokenResult.token)
           } catch {
               result(FlutterError(code: "TOKEN_ERROR", message: error.localizedDescription, details: nil))
           }
       }
   }

4. Register the bridge in AppDelegate.swift:

   import Flutter
   import UIKit
   @main
   @objc class AppDelegate: FlutterAppDelegate, FlutterImplicitEngineDelegate {
       // Keep the bridge in a property: an object created in a local variable
       // gets deallocated and silently stops responding to calls from Dart.
       private var radarSdkBridge: RadarSdkBridge?
       func didInitializeImplicitFlutterEngine(_ engineBridge: FlutterImplicitEngineBridge) {
           GeneratedPluginRegistrant.register(with: engineBridge.pluginRegistry)
           if let messenger = engineBridge.pluginRegistry.registrar(forPlugin: "RadarSdkBridge")?.messenger() {
               radarSdkBridge = RadarSdkBridge(messenger: messenger)
           }
       }
   }

Android

1. Download the sdk_core-release.aar and sdk_logs-release.aar files and copy them into the android/app/libs/ folder according to the Android Integration section.

2. Add the dependencies to the android/app/build.gradle.kts file:

   android {
       // … the rest of your project configuration …
   }

   dependencies {
       // … other dependencies …
       implementation(fileTree(mapOf("dir" to "libs", "include" to listOf("*.aar"))))
   }

3. Create the RadarSdkBridge.kt file in the android/app/src/main/kotlin/.../ directory:

   package com.mobilesdkdemo

   import android.content.Context
   import io.flutter.plugin.common.BinaryMessenger
   import io.flutter.plugin.common.MethodCall
   import io.flutter.plugin.common.MethodChannel

   import net.payrdr.mobile.payment.sdk.core.SDKCore
   import net.payrdr.mobile.payment.sdk.core.model.BindingParams
   import net.payrdr.mobile.payment.sdk.core.model.CardParams
   import net.payrdr.mobile.payment.sdk.core.model.SDKCoreConfig

   private const val CHANNEL_NAME = "radar_sdk"

   class RadarSdkBridge(private val context: Context) : MethodChannel.MethodCallHandler {

       private val sdkCore by lazy { SDKCore(context = context) }

       fun register(messenger: BinaryMessenger) {
           MethodChannel(messenger, CHANNEL_NAME).setMethodCallHandler(this)
       }

       override fun onMethodCall(call: MethodCall, result: MethodChannel.Result) {
           when (call.method) {
               "generateNewCardToken" -> generateNewCardToken(call, result)
               "generateStoredCardToken" -> generateStoredCardToken(call, result)
               else -> result.notImplemented()
           }
       }

       private fun generateNewCardToken(call: MethodCall, result: MethodChannel.Result) {
           try {
               val params = CardParams(
                   pan = call.argument<String>("pan")!!,
                   cvc = call.argument<String>("cvc")!!,
                   expiryMMYY = call.argument<String>("expiryMMYY")!!,
                   cardHolder = call.argument<String>("cardHolder")!!,
                   mdOrder = call.argument<String>("mdOrder")!!,
                   pubKey = call.argument<String>("pubKey")!!
               )
               val config = SDKCoreConfig(paymentCardParams = params)
               val token = sdkCore.generateWithConfig(config).token

               result.success(token)
           } catch (e: Exception) {
               result.error("TOKEN_ERROR", e.message, null)
           }
       }

       private fun generateStoredCardToken(call: MethodCall, result: MethodChannel.Result) {
           try {
               val params = BindingParams(
                   bindingID = call.argument<String>("storedPaymentId")!!,
                   mdOrder = call.argument<String>("mdOrder")!!,
                   cvc = call.argument<String>("cvc")!!,
                   pubKey = call.argument<String>("pubKey")!!
               )
               val config = SDKCoreConfig(paymentCardParams = params)
               val token = sdkCore.generateWithConfig(config).token

               result.success(token)
           } catch (e: Exception) {
               result.error("TOKEN_ERROR", e.message, null)
           }
       }
   }

4. Register the bridge in MainActivity.kt:

   package com.mobilesdkdemo

   import io.flutter.embedding.android.FlutterActivity
   import io.flutter.embedding.engine.FlutterEngine

   class MainActivity : FlutterActivity() {
       override fun configureFlutterEngine(flutterEngine: FlutterEngine) {
           super.configureFlutterEngine(flutterEngine)
           RadarSdkBridge(applicationContext).register(flutterEngine.dartExecutor.binaryMessenger)
       }
   }

Usage

1. Create a wrapper over the channel in lib/radar_sdk.dart. The channel name and the argument key names have to match the native side:

   import 'package:flutter/services.dart';

   class RadarSdk {
       const RadarSdk._();

       static const MethodChannel _channel = MethodChannel('radar_sdk');

       static Future<String?> generateNewCardToken({
           required String pan,
           required String cvc,
           required String expiryMMYY,
           required String cardHolder,
           required String mdOrder,
           required String pubKey,
       }) {
           return _channel.invokeMethod<String>('generateNewCardToken', {
               'pan': pan,
               'cvc': cvc,
               'expiryMMYY': expiryMMYY,
               'cardHolder': cardHolder,
               'mdOrder': mdOrder,
               'pubKey': pubKey,
           });
       }

       static Future<String?> generateStoredCardToken({
           required String storedPaymentId,
           required String cvc,
           required String pubKey,
           required String mdOrder,
       }) {
           return _channel.invokeMethod<String>('generateStoredCardToken', {
               'storedPaymentId': storedPaymentId,
               'cvc': cvc,
               'pubKey': pubKey,
               'mdOrder': mdOrder,
           });
       }
   }

2. Use the methods from Dart as follows:

   // Generate a token for a new card
   final token = await RadarSdk.generateNewCardToken(
     pan: '4111111111111111',  // PAN
     cvc: '123',               // CVC
     expiryMMYY: '12/25',      // Expiry MM/YY
     cardHolder: 'CARDHOLDER NAME', // Cardholder name
     mdOrder: 'mdOrder',       // Obtained when registering the order
     pubKey: '-----BEGIN PUBLIC KEY-----...', // Public key from /payment/se/keys.do
   );

   // Generate a token for a stored card
   final bindToken = await RadarSdk.generateStoredCardToken(
     storedPaymentId: 'bindingId', // Stored card ID
     cvc: '123',                   // CVC
     pubKey: '-----BEGIN PUBLIC KEY-----…', // Public key from /payment/se/keys.do
     mdOrder: 'mdOrder',           // Obtained when registering the order
   );

Errors from the native side reach Dart as a PlatformException: when token generation fails the bridge answers with the TOKEN_ERROR code and puts the SDK error text in the message field.

try {
  final token = await RadarSdk.generateNewCardToken(/* … */);
} on PlatformException catch (e) {
  // e.code == 'TOKEN_ERROR', e.message — the SDK error text
}

Demo Application

An example integration of Mobile SDK Core into a Flutter application can be found on GitHub.

Mobile SDK Source

iOS

iOS sources on GitHub

iOS releases on GitHub

Requirements: iOS 10.0 or newer

Android

Android sources on GitHub

Android releases on GitHub

Requirements: Android 5.0 or newer
