Payment Widget

Overview

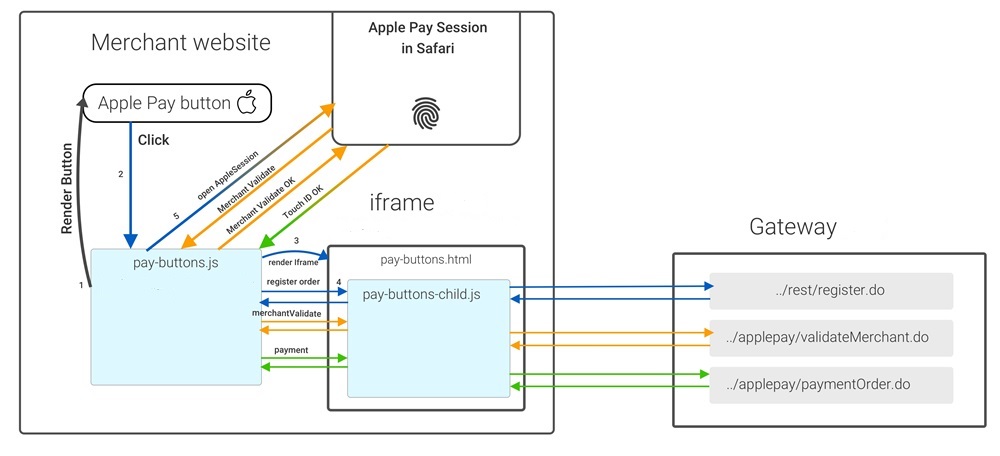

Payment Widget is a script intended for placing on the merchant's pages for quick connection of Apple Pay and Google Pay buttons directly on the merchant's store page. For example, for displaying these buttons in the customer's shopping cart.

Below you can find the description of script connection and usage. You can also quickly generate the code of the script via Merchant Portal. Read more here.

Script connection

Adding file

On the merchant's page, in the <head> tag, it is necessary to add a link to the pay-buttons.js file.

The pay-buttons.js file must be located in the pay-buttons folder, on the same level with merchants folder (with payment pages).

Script declaration must contain id="pay-buttons".

<head>
  ...
  <script
    src="https://uat.dskbank.bg/payment/pay-buttons/pay-buttons.js"
    id="pay-buttons">
  </script>
  ...
</head>

Initialization

<script>
  document.addEventListener("DOMContentLoaded", function () {
    var widget = payButtonsWidget("containerId"); // where `containerId` is and id of the DOM-element where the buttons should be added

    widget.init({
      gatewayInfo: { // Information for Payment gateway
        token: "i29v9o5hkmuv2590l7661p9vcu", // Merchant's token
        amount: 852300, // Order amount in minor units
        returnUrl: "http\:\/\/yourwebsite.com\/success.html", // Target address after payment
        merchantLogin: "buttonApple",
      },

      applePay: { // Information for ApplePay session
        merchantId: "yourwebsite.com", // id of the merchant in Apple
      },

      googlePay: {
        environment: "TEST",
      },
    });
  });
</script>

Initialization parameters

Below is the complete list of the parameters used for the script initialization.

Required Name Type Description
Optional cartItems Array of objects Array of objects for description of the cart items. See nested parameters.
Optional appleButtonClass String Class name that will be assigned to applePay button, in order to stylize the button separately or to address it. Default value: pay-button_applepay.
Mandatory applePay Object Object containing information about Apple session. See nested parameters.
Optional debug Boolean If true - debug mode is enabled, all service information will be shown under the button. Default value: false.
Mandatory gatewayInfo Object Object containing information for the order in Payment gateway. See nested parameters.
Mandatory googlePay Object Object containing information about Google Pay session. See nested parameters.

Parameters of cartItems block

Required Name Type Description
Mandatory

name String [1..255] Name or the description of an item in any format.
Optional

itemDetails Object Object containing the parameters describing an item. The description of the nested elements is given below.
Mandatory

quantity Object Element describing the total of items of one positionId and its unit of measurement. The description of the nested elements is given below.
Optional

itemAmount Integer [1..12] The total cost of all instances of one positionId specified in minor denomination of the currency. itemAmount must be passed only if the itemPrice parameter has not been passed. Otherwise passing of itemAmount is not required. If both parameters itemPrice and itemAmount are passed in the request, then itemAmount shall be equal itemPrice * quantity, otherwise the request will return an error.
Optional

itemPrice Integer [1..18] Total cost of instance of one positionId specified in minor currency units.
Optional

itemCurrency Integer [3] ISO 4217 currency code. If the parameter is not specified, it is considered to be equal to the Order currency.
Mandatory

itemCode String [1..100] Number (identifier) of an item in the store system.

Example of cartItems block:

[
  {
    name: 'Ball pen',
    quantity: {
        value: 1,
        measure: "pcs"
    },
    itemAmount: (totalAmount * 100) / 2,
    itemCurrency: "978",
    itemCode: 'number_1'
  },
  {
    name: 'Cheese',
    quantity: {
        value: 1.4,
        measure: "kg"
    },
    itemAmount: (totalAmount * 100) / 2,
    itemCurrency: "978",
    itemCode: 'number_2'
  }
]

Parameters of gatewayInfo object

Required Name Type Description
Mandatory token String Token of the customer in administration console. It is necessary for customer identification.
Optional registerPreAuth Boolean Registraion of two-stage payment. Default value: false.
Conditional orderNumber String [1..36] Number of the order in the store system. Optional, if a setting to generate order number is enabled.
Optional

amount Integer [0..12] Payment amount in minor currency units (e.g. in cents).
Optional

currency Integer [3] ISO 4217 encoded currency key. If not specified, the default value is used.
Mandatory

returnUrl String [1..512] The address to which the user will be redirected if the payment is successful. The address must be specified in full including the protocol used (for example, https://mybestmerchantreturnurl.com instead of mybestmerchantreturnurl.com). Otherwise, the user will be redirected to the address of the following type https://uat.dskbank.bg/payment/<merchant_address>.
Optional

failUrl String [1..512] The address to which the user is to be redirected in case of a failed payment. The address must be specified in full including the protocol used (for example, https://mybestmerchantreturnurl.com instead of mybestmerchantreturnurl.com). Otherwise, the user will be redirected to the address of the following type https://uat.dskbank.bg/payment/<merchant_address>.
Optional

description String [1..598] Order description in any format.
To enable sending this field to the processing system, contact the technical support service.
It is not allowed to fill this parameter with personal data or payment data (card numbers, etc.). This requirement is due to the fact that the order description is not masked in Merchant Portal and log files.
Optional

clientId String [0..255] Customer number (ID) in the merchant's system — up to 255 characters. Used to implement the functionality of stored-credential transactions. Can be returned in the response if the merchant is allowed to store credentials.
Specifying this parameter in stored-credential transactions is mandatory. Otherwise, a payment will be unsuccessful.
Optional

sessionTimeoutSecs Integer [1..9] Order lifetime in seconds. If the parameter is not specified, the value specified in the merchant settings or the default value (1200 seconds = 20 minutes) will be used. If the request contains expirationDate, the value of sessionTimeoutSecs is not taken into account.
Optional

jsonParams Object A set of additional free-form attributes, structure:
jsonParams={"param_1_name":"param_1_value",...,"param_n_name":"param_n_value"}
These fields can be passed to the Processing Center for further processing (additional setup is needed, please contact Support).
Some pre-defined jsonParams attributes:
  • email - customer's email. Attribute jsonParams.phone is deprecated and soon will be deleted, you should use email parameter
  • phone - customer's phone number. Attribute jsonParams.phone is deprecated and soon will be deleted, you should use orderPayerData.mobilePhone parameter
  • backToShopUrl - adds checkout page button that will take a cardholder back to the assigned merchant web-site URL
  • backToShopName - customizes default "Back to shop" button text label if used along with backToShopUrl
  • installments - maximum number of allowed authorizations for installment payments. Is required for creating an installment stored credential.
  • totalInstallmentAmount - total sum of all installment payments. Is required for creating an installment stored credential.
  • recurringFrequency - minimum number of days between authorizations. Is required for creating a recurrent or installment stored credential.
  • recurringExpiry - the date after which authorizations are not allowed, in YYYYMMDD format. Recommended for creating a recurrent or installment stored credential (mandatory for 3DS2)
Optional

orderBundle Object Object containing cart of items. The description of the nested elements is given below.
Optional

merchantLogin String [1..255] To register an order on behalf of another merchant, specify the merchant's API account login in this parameter.
Can be used only if you have the permission to see the transactions of other merchants or if the specified merchant is your child merchant.
Optional merchantName String merchantFullName in Payment gateway. Is necessary to display merchant's name in payment request api window.
Optional

dynamicCallbackUrl String [1..512] This parameter allows you to use the functionality of sending callback notifications dynamically. Here you can pass the address to which all "payment" callback notifications activated for the merchant will be sent. "Payment" notifications are callback notifications related to the following events: successful hold, payment declined by timeout, cardpresent payment is declined, successful debit, refund, cancellation. At the same time, callback notifications activated for the merchant that are not related to payments (enabling/disabling a stored credential, storing a credential) will be sent to a static address for callbacks. Whether the parameter is mandatory or not depends on the merchant configuration on Payment Gateway side.
Optional

ip String [1..39] Buyer's IP address. IPv6 is supported in all requests. (up to 39 characters).
Optional

expirationDate String [19] Date and time of the order expiry. Format used: yyyy-MM-ddTHH:mm:ss.
If this parameter is not passed in the request, sessionTimeoutSecs is used to define the expiry of the order.
Optional

postAddress String [1..255] Delivery address.
Optional

feeInput Integer [1..8] Fee amount in minimum currency units. Must be enabled by respective Merchant-level permission in the Gateway.
Conditional

email String [1..40] Email to be displayed on the payment page. Customer's email must be passed if client notification is configured for the merchant. Example: client_mail@email.com.
The email will not be validated on registration. It will be later validated on payment.
Optional billingPayerData Object A block with the client's registration data (address, postal code) necessary for passing the address verification within the AVS/AVV services. Mandatory if the feature is enabled for the merchant on Payment Gateway side. See nested parameters.
Optional shippingPayerData Object Object containing customer delivery data. It is used for further 3DS authentication of the client. See nested parameters.
Optional preOrderPayerData Object Object containing pre-order data. It is used for further 3DS authentication of the client. See nested parameters.
Optional orderPayerData Object Object containing data about the order payer. It is used for further 3DS authentication of the client. See nested parameters.
Optional

billingAndShippingAddressMatchIndicator String [1] Indicator for matching the cardholder's billing address and shipping address. This parameter is used for further 3DS authentication of the customer.
Possible values:
  • Y - the cardholder's billing address and shipping address match;
  • N - cardholder billing address and shipping address do not match.

Below are the parameters of the billingPayerData block (data about the client registration address).

Required Name Type Description
Optional

billingCity String [0..50] The city registered on a specific card of the Issuing Bank.
Optional

billingCountry String [0..50] The country registered on a specific card of the Issuing Bank. Format: ISO 3166-1 (Alpha 2 / Alpha 3 / Number-3) or the country name. We recommend to pass a two/three-letter ISO country code.
Optional

billingAddressLine1 String [0..50] The address registered on a specific card of the Issuing Bank. Line 1. Mandatory to be passed in order AVS verification works.
Optional

billingAddressLine2 String [0..50] The address registered on a specific card of the Issuing Bank. Line 2.
Optional

billingAddressLine3 String [0..50] The address registered on a specific card of the Issuing Bank. Line 3.
Optional

billingPostalCode String [0..9] Postal code registered on a specific card of the Issuing Bank. Mandatory to be passed in order AVS verification works.
Optional

billingState String [0..50] The state registered on a specific card of the Issuing Bank. Format: full ISO 3166-2 code, its part, or the state/region name. Can contain Latin characters only. We recommend to pass a two-letter ISO state code.
Optional

payerAccount String [1..32] Payer's account number.
Optional

payerLastName String [1..64] Payer's last name.
Optional

payerFirstName String [1..35] Payer's first name.
Optional

payerMiddleName String [1..35] Payer's middle name.
Optional

payerCombinedName String [1..99] Payer's full name.
Optional

payerIdType String [1..8] Type of the payer's identifying document provided.
Allowed values:
  • IDTP1 - Passport
  • IDTP2 - Driving license
  • IDTP3 - Social card
  • IDTP4 - Citizen ID card
  • IDTP5 - Certificate of Business
  • IDTP6 - Refugee certificate
  • IDTP7 - Residence permit
  • IDTP8 - Foreign passport
  • IDTP9 - Official passport
  • IDTP10 - Temporary passport
  • IDTP11 - Sailor's passport
Optional

payerIdNumber String [1..99] Number of the payer's identifying document provided.
Optional

payerBirthday String [1..20] Payer's birth date in the YYYYMMDD format.

Description of parameters in shippingPayerData object:

Required Name Type Description
Optional shippingCity String [1..50] The customer's city (from the delivery address)
Optional shippingCountry String [1..50] The customer's country
Optional shippingAddressLine1 String [1..50] The customer's primary address (from the shipping address)
Optional shippingAddressLine2 String [1..50] The customer's primary address (from the shipping address)
Optional shippingAddressLine3 String [1..50] The customer's primary address (from the shipping address)
Optional shippingPostalCode String [1..16] The customer's zip code for delivery
Optional shippingState String [1..50] Customer's state/region (from delivery address)
Optional shippingMethodIndicator Integer [2] Shipping Method Indicator.
Possible values:
  • 01 - delivery to the cardholder's billing address
  • 02 - delivery to another address verified by Merchant
  • 03 - delivery to an address other than the cardholder's primary (settlement) address
  • 04 - shipment to the store/self-collection (the store address should be specified in the relevant delivery parameters)
  • 05 - Digital distribution (includes online services and e-gift cards)
  • 06 - travel and event tickets that are not deliverable
  • 07 - Other (e.g. games, non-deliverable digital goods, digital subscriptions, etc.)
Optional deliveryTimeframe Integer [2] Product delivery timeframe.
Possible values:
  • 01 - digital distribution
  • 02 - same-day delivery
  • 03 - overnight delivery
  • 04 - delivery within 2 days after payment and later
Optional deliveryEmail String [1..254] Target email address for delivery of digital distribution. Note that it is preferrable to pass the email in a separate email parameter of the request. The deliveryEmail parameter specified in this block is only used to fill MerchantRiskIndicator during 3DS authorization.

Description of parameters in preOrderPayerData object:

Required Name Type Description
Optional preOrderDate String [10] Expected date when delivery will be available (for pre-ordered purchases), in the format YYYYYYMMDD.
Optional preOrderPurchaseInd Integer [2] Indicator of a customer placing an order for available or future delivery.
Possible values:
  • 01 - delivery available;
  • 02 - future delivery
Optional reorderItemsInd Integer [2] An indicator that the customer is rebooking a previously paid delivery as part of a new order.
Possible values:
  • 01 - order placed for the first time;
  • 02 - repeated order

Description of parameters in orderPayerData object:

Required Name Type Description
Optional homePhone String [7..15] Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the + sign or 00 at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid:
  • +35799988877;
  • 0035799988877;
  • 35799988877.
Optional workPhone String [7..15] Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the + sign or 00 at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid:
  • +35799988877;
  • 0035799988877;
  • 35799988877.
Conditional mobilePhone String [7..15] Customer's phone number. It is always necessary to specify the country code, but you can specify or omit the + sign or 00 at the beginning. The number must be 7 to 15 digits long. Thus, the following options are valid:
  • +35799988877;
  • 0035799988877;
  • 35799988877.

For payment by VISA with 3DS authorization, it is necessary to specify either phone or email of the cardholder. If you have a setting to display phone number on the payment page and have specified an invalid number, the customer will have a possibility to correct it on the payment page.

Description of parameters in orderBundle object:

Required Name Type Description
Optional

orderCreationDate String [19] Order creation date in the following format: YYYY-MM-DDTHH:MM:SS.
Optional

customerDetails Object Block containing customer attributes. The description of the tag attributes is given below.
Mandatory

cartItems Object Object containing cart items attributes. The description of nested elements is given below.

Description of parameters in customerDetails object:

Required Name Type Description
Optional

contact String [0..40] Customer's preferred way of communication.
Optional fullName String [1..100] Payer's full name.
Optional

passport String [1..100] Customer's passport serial number in the following format: 2222888888.
Optional

deliveryInfo Object Object containing delivery address attributes. The description of the nested elements is given below.

Description of parameters in deliveryInfo object.

Required Name Type Description
Optional

deliveryType String [1..20] Delivery method.
Mandatory

country String [2] Two letter code of the country of delivery.
Mandatory

city String [0..40] City of destination.
Mandatory

postAddress String [1..255] Delivery address.

Description of parameters in cartItems object.

Required Name Type Description
Mandatory

items Object An element of the array containing cart item attributes. The description of the nested elements is given below.

Description of parameters in items object.

Required Name Type Description
Mandatory

positionId Integer [1..12] Unique product identifier in the cart.
Mandatory

name String [1..255] Name or the description of an item in any format.
Optional

itemDetails Object Object containing the parameters describing an item. The description of the nested elements is given below.
Mandatory

quantity Object Element describing the total of items of one positionId and its unit of measurement. The description of the nested elements is given below.
Optional

itemAmount Integer [1..12] The total cost of all instances of one positionId specified in minor denomination of the currency. itemAmount must be passed only if the itemPrice parameter has not been passed. Otherwise passing of itemAmount is not required. If both parameters itemPrice and itemAmount are passed in the request, then itemAmount shall be equal itemPrice * quantity, otherwise the request will return an error.
Optional

itemPrice Integer [1..18] Total cost of instance of one positionId specified in minor currency units.
Optional

itemCurrency Integer [3] ISO 4217 currency code. If the parameter is not specified, it is considered to be equal to the Order currency.
Mandatory

itemCode String [1..100] Number (identifier) of an item in the store system.

Description of parameters in quantity object.

Required Name Type Description
Mandatory

value Integer [1..18] Number of items in one positionId. Use a decimal point as a separator in fractions.
Mandatory

measure String [1..20] The unit of measurement for the quantity of item instances.

Description of parameters in itemDetails object.

Required Name Type Description
Optional

itemDetailsParams Object Parameter describing additional information regarding a line item. The description of the nested elements is given below.

Description of parameters in itemDetailsParams object.

Required Name Type Description
Mandatory

value String [1..2000] Additional item info.
Mandatory

name String [1..255] Name of the parameter describing the details of an item

Parameters of applePay block

See more details in the button constructor.

Required Name Type Description
Optional buttonStyle String Button display style. Allowed values: black, white, white-outline. Default value: black.
Optional paymentRequest String Description of Apple Pay payment session. The detailed description can be found in the official documentation. See the example below.
Optional paymentType String Type of the payment button appearance. Allowed values: plain, buy, donate, set-up, book, subscribe. Default value: buy. For donate, book, subscribe types, the button width must be at least 200 px.
Mandatory merchantId String merchantId in Apple, for example, website.com. This site will be also used as label in Apple Pay window. As it is limited by length, it is easier to display site domain.
Mandatory language String [2] ISO 639-1 encoded key of the button language.

Example of paymentRequest:

{
  countryCode: 'BG',
  currencyCode: 'BGN',
  supportedNetworks: [
    'masterCard',
    'visa',
    'electron',
    'maestro'
  ],
  merchantCapabilities: [
    'supports3DS',
    'supportsCredit',
    'supportsDebit'
  ],
  total: {
    label: '',
    amount: 1.00 // major units
  },
  requiredShippingContactFields: [
    'postalAddress',
    'name',
    'phone',
    'email'
  ]
}

Parameters of googlePay block

Required Name Type Description
Mandatory environment String Environment. If not specified, the GPay button is not displayed. Allowed values:
  • PRODUCTION - used to show valid payment ways, if an active Google merchant ID is specified for the domain. Is used for production only.
  • TEST - test payment ways intended for testing (default value).
Optional emailRequired Boolean Whether email should be asked during payment via PaymentRequest API. Default value: true.
Optional phoneNumberRequired Boolean Whether phone number should be asked during payment via PaymentRequest API. Default value: true.
Optional billingAddressRequired Boolean Whether billing address should be asked during payment via PaymentRequest API. Default value: true.
Optional shippingAddressRequired Boolean Whether shipping address should be asked during payment via PaymentRequest API. Default value: false.
Optional payerNameRequired Boolean Whether payer name should be asked during payment via PaymentRequest API. Default value: false.
Conditional allowedCountryCodes Array of String List of country codes where shipping is available, in the ISO 3166-1 alpha-2 format. Mandatory, if shippingAddressRequired = true.
Optional buttonColor String Google Pay button color. Allowed values:
  • default - selected value by default. Currently, black is used.
  • black - black button for placing on a white or another light background.
  • white - white button for placing on a colored background.
Default value: default.
Optional buttonType String Type of the label on the button. Allowed values:
  • long - button with the text "Pay via Google Pay" (by default). If one of available languages is selected in the browser settings, a localized version of the button will be displayed.
  • short - Google Pay payment button without text.
Default value: short.

Script work scheme

Payment widget scheme

  1. Merchant places the pay-buttons.js on their site. The script is located in PCI DSS zone. For example, https://uat.dskbank.bg/payment/pay-buttons/pay-buttons.js.
  2. During loading the page, the pay-buttons.js script defines if Apple Pay is available for payment. If yes, the script renders the payment button.
  3. During loading the script, an iframe is previously created with the pay-buttons.html page, which is physically located near pay-buttons.js. The pay-buttons.html page contains connected script pay-buttons-child.js, which is necessary for communication of the parent window and the iframe.
  4. When the button is clicked, pay-buttons.js asks pay-buttons-child.js to register a new order in Payment gateway with the parameters passed by the merchant during the script initialization. Communication between parent window and child window is performed via the postMessage () technology in the browser. Additionally, the child script passes the response to the merchant's site.
  5. On receiving mdOrder from Payment gateway, parent script pay-buttons.js opens Apple Pay session (ApplePaySession). This is a native window in Safari which displays information about the payment.
  6. ApplePaySession returns validationUrl from the user's environment, and pay-buttons.js performs validation on the server ( validateMerchant.do ). If the validation is successful, the object with the signature and service information is returned to ApplePaySession and the session asks the user to confirm identity - Touch ID, Face ID, digital code or using Apple Watch.
  7. After successful proof of identity, the request for payment is sent with generated token from ApplePaySession.
  8. As a result of successful payment, the customer is redirected to the returnUrl, specified by the merchant on the script initialization.

Supporting by browsers

Payment way Supported browsers
Apple Pay
(supported only on devices with biometrics) MacOS Safari, iOS Safari
Google Pay
via Payment Request API (see below) Windows Chrome 77+
Google Pay via classic implementation using pay.js script (see below) Windows Chrome <77, MacOS Safari, MacOS Chrome, iOS Safari, iOS Chrome

Specific of GPay button work

By default, GPay tries to work via Payment Request API. If a browser does not support this API for some reason, the button is implemented via the standard Google library pay.js.

Testing and deployment

Test environment (UAT)

Connect the script with https://uat.dskbank.bg/payment/ address.

<script
  src="https://uat.dskbank.bg/payment/pay-buttons/pay-buttons.js"
  id="pay-buttons">
</script>

Production environment (PROD)

Connect the script with https://uat.dskbank.bg/payment/ address.

<script
  src="https://epg.dskbank.bg/payment/pay-buttons/pay-buttons.js"
  id="pay-buttons">
</script>
Categories:
eCommerce API V1
Categories
Search results
Navigate
Select
Close
Categories
Search results
