After the payment
Once a payment is made, you can manage it in your Personal Area on Merchant Portal or over the API. Read the sections below to learn more.
Reversal & Refund
If you want to cancel the payment, you can perform one of two operations, depending on the order status: reversal or refund. These operations are described below.
Reversal
Reversal means that the transaction is cancelled and all the funds reserved on the client’s account are released. This operation can be applied to two-phase transactions, when the funds are reserved but not captured yet (Approved status). After the reversal, the transaction gets the Reversed status.
The following ways of reversal are available:
- Reversing a payment on Merchant Portal by clicking the Reverse/Refund button in transaction details. This button works both for reverse and refund depending on the transaction status. Merchant Portal makes a reverse if possible, and if not, makes a refund. Read more here.
Reversing a payment over the API by sending the reverse.do request.
Reversing all two-phase payments automatically after some period. If you need this functionality, contact the support team of the bank.
Reversal can be made only before the end of the current bank day.
Refund
Refund means returning already captured funds to the customer. This operation can be applied to one-phase or two-phase transactions when the funds are already captured (Deposited status). You can make refund more than once, but for a total amount not exceeding the initial captured amount.
The following ways of issuing a refund are available:
- Issuing a refund on Merchant Portal by clicking the Reverse/Refund button in transaction details. This button works both for reverse and refund depending on the transaction status. Merchant Portal makes a reverse if possible, and if not, makes a refund. Read more here.
- Issuing a refund via API by sending the refund.do request.
Both reversal and refund can trigger callback notifications. Read more here.
Getting the order status
You can check the order status at any moment. For example, you may check it after the payment to make sure the order is really paid. The status of the order is available on the Merchant Portal and can also be retrieved over the API.
Looking up the order status on Merchant Portal
You can see the order status in the Transaction details page of the corresponding transaction. In particular, status Deposited
means a succesfull payment.
Getting the order status over the API
The online store sends the getOrderStatusExtended.do request to the Payment Gateway to check the order status. The request contains either orderId
(the unique order number in the payment gateway) or orderNumber
(the unique order number in the online store’s system). If both parameters are passed to the payment gateway, orderId
has higher priority.
The payment gateway returns the order status in the orderStatus
parameter. Status 2
means a succesfull payment.
Additional functionality
Two-phase payments
Types of payment
A company may use two types of payments, depending on the specifics of its business:
- One-phase - transactions for payment for goods/services made over the Internet using bank cards that do not require additional confirmation, i.e. holding and debiting of funds takes place in one stage. This type of payments is preferable if the goods or service is provided immediately after payment
- Two-phase - transactions for payment for goods/services made via the Internet with the use of bank cards that require additional confirmation, i.e. payment is made in two stages. At the first stage the check of availability and holding of funds of the payer (pre-authorization) takes place; then, at the second stage, the company either confirms to debit funds, or cancels holding of funds
The amount to be debited may be less than the amount that was held. Debits exceeding the held amount are available as well (with configurable limits). If you need this feature please contact our Support Service.
Two-phase payments should be used if some time elapses between the buyer's decision to pay and delivery of the selected good or service.
For the payment to be a two-phase payment, the order must be registered via registerPreAuth.do
request, not register.do
.
Two-phase payment is suitable for any method of integration:
For Redirect, Direct, CMS, SDK integration options, it is possible to register and complete an order via API.
Captures
A capture of a pre-authorized amount happens in the second phase of the two-phase payment, when the funds are debited from card holder's account. Once the capture occurs, the order becomes completed and goes in the DEPOSITED status. The amount captured can be greater or less than the pre-authorization amount, and partial capture in increments is available as well. If you do not pass the amount, then the full amount will be executed.
There are three ways to make a capture:
- Capturing a payment on Merchant Portal
- Capturing a payment over the API
- Capturing all two-phase payments automatically after some period
It is available to do a partial capture. It will be less than the order amount and immediately final.
Autocompletion and autoreversal
If you have this feature enabled for you by our support team, you can set up your payment integration so that all preauthorized (Approved) two-phase orders would be completed or reversed automatically after a specific time period. This means that you don't have to process each order manually in the Merchant Portal or to call deposit.do
or reverese.do
API methods.
To enable order autocompletion via the Merchant Portal:
- Log in to Personal Area.
- In the navigation bar to the left, go to Settings by clicking on the icon.
- Go to the General tab.
- In the Autocomplete section, select Autocomplete enabled.
- In the Completion time (in hours) field, enter the number of hours after registration, through which a two-phase order should be automatically completed.
It is also possible to enable order autoreversal. In this case, all preauthorized (Approved) two-phase orders will be automatically reversed after a predefined period. Reversal means that the transaction is canceled and all the funds reserved on the client’s account are released.
It is also possible to set the date and time of autocompletion and autoreversal via API, by passing the autocompletionDate
and autoReverseDate
parameters in registerPreAuth.do or instantPayment.do API requests. The used timezone is UTC+0.
Please find below the points describing the logic how autocompletion and autoreversal works.
When the order is registered and autocompletion is set for it:
- If the order status remains Created at the moment the predefined completion starts, no kind of operation will be applied to the order: finally it will expire and be closed. In case the order is deposited after the predefined completion period has passed, the autocompletion won't work.
- If the order is preauthorized and not completed before the predefined completion period, the order will be fully completed, i.e. the preauthorized amount will be automatically deposited in full.
- If the order is preathorized and completed before the predefined completion period, the order status will change according to its normal lifecycle.
- If refund/reverse is applied to the order before the predefined completion period, the autocompletion won't work then.
When the order is registered and autoreversal is set for it:
- If the order status remains Created at the moment the predefined reversal starts, no kind of operation will be applied to the order: finally it will expire and be closed. In case the order is deposited after the predefined autoreversal period has passed, the autoreversal won't work.
- If the order is preauthorized and not completed before the predefined reversal period, the order will be fully canceled, i.e. the preauthorized amount will be automatically reversed in full.
- If the order is preathorized and completed before the predefined reversal period, the order status will change according to its normal lifecycle.
- If refund/reverse is applied to the order before the predefined reversal period, the autoreversal won't work then.
Stored-credential transactions
A stored-credential transaction is used when a cardholder authorizes a merchant to store the payment credentials for further payments. For example, a payer may opt to save their card at checkout. In this case a unique token is generated by the Payment Gateway that links the payer's card number (PAN) to their ID in the store system (for example, to payer's login).
Read about the types of stored credentials supported by the Payment Gateway here.
Storing a credential
You can store a payer's credential via API or via the Merchant Portal UI for any type of integration. See the details below.
Storing a credential upon payment via API
To save a card (create a stored credential) in the Payment Gateway via API, you need to pass the clientId
parameter in an order registration or payment initiating request. clientId
is an identifier of your client (cardholder), all the client's cards will be attached to this number. For test purposes, you may use any number as clientId
. This parameter can be passed in the following requests:
The stored credential will be created only after successful payment. After the payment, you will be able to retrieve the identifier of the stored credential via the getOrderStatusExtended.do request in the bindingId
parameter.
To store a credential upon payment via UI
To store a credential upon payment via UI, go to the Personal Area, issue the invoice via the e-mail and make sure to specify the Client ID parameter. As a result, the client will see the Save my card checkbox on the payment page. If the client checks this checkbox, their credential will be stored: the card data will be saved for this client and the client will not have to enter the card data next time. Read more here.
Storing a credential with no charge
If you have this feature enabled for you by our support team, you can store a credential via API with no charge.
To do this, pass the value VERIFY
in the features
block of any payment request together with the clientId
parameter. In this case, the cardholder will not be charged any amount. The response will contain the identifier of the stored credential in the bindingId
parameter. This binding ID can be used in subsequent requests instead of the saved card details.
Read more about the VERIFY
feature here.
If you pass the value FORCE_CREATE_BINDING
in the features
block of the payment request, the credential will be stored forcefully – even if the client has chosen not to save card data on the payment page.
TheFORCE_CREATE_BINDING
value cannot be passed in a request with an existing bindingId
or bindingNotNeeded = true
(will cause validation error). Passing this value also requires passing the clientId
parameter.
If both the FORCE_CREATE_BINDING
and the VERIFY
values are passed in the features
block, the order will be created for the purposes of credential storage ONLY (without payment).

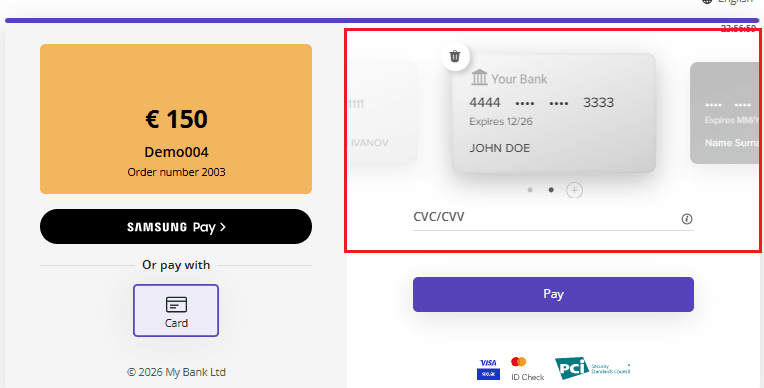

Making a stored-credential payment
Stored-credential payments API
Once a credential is stored, you can handle it over the stored-credential payments API (subject to Merchant-level permission). The following methods are available:
- paymentOrderBinding.do – make a stored-credential payment
- getBindings.do – get the list of client's stored credentials
- getBindingsByCardOrId.do – get the list of all stored credentials of a bank card
- unBindCard.do – disable an existing stored credential
- bindCard.do – re-enable an existing stored credential that was disabled
- extendBinding.do – extend a stored credential expiration date
Using stored credentials in recurrent payments
You can use stored credentials for recurring payments. In this case, the bindingId
parameter is used in regular order registration request. Read more here.
Using stored credentials in wallet payments
You can also store credentials upon payments via Apple Pay and Google Pay wallets. To do this, pass the clientId
parameter in a payment request or in an order registration request (see the description of API requests for wallets).
In this case, a stored credential will link the payer's tokenized card number (DPAN) to their ID in the store system (for example, to payer's login). A credential stored this way cannot be used for displaying a card number on a payment page (because the card number is tokenized). However, this sored credential can be used in recurring payments.
Industry Practice operations
Introduction
MIT (Merchant-initiated Transaction) Industry Practice transactions performed after the initiating CIT (Cardholder-initiated Transaction) transaction include transactions of the following types:
- Incremental Authorization Transaction
- Resubmission Transaction
- Delayed Charges Transaction
- Reauthorization Transaction
- No Show Transaction
This functionality is available with the appropriate permission. To activate it, contact technical support.
Requirements for Industry Practice payments:
- Permission for Industry Practice payments has been activated.
- The original payment was made using 3DS 2.0/2.1/2.2 authentication (frictionless/challenge for Resubmission, Reauthorization and challenge for Incremental, Delayed charges, No show).
- The original payment is a one-phase order in erroneous statuses for Resubmission, Reauthorization transactions, as well as in the
Deposited
status for Incremental, Delayed charges, No show transactions. - Initial order with tokenized wallet payment.
- Initial CIT transaction with
tii = CI, RI, II, F
(more information about CIT transaction types is available here). - Stored credential functionality is deactivated for Merchant or stored credentials V2 are used (stored credential types such as regular, recurrent and installment are used).
Industry Practice payments are not possible for the following types of original transactions:
3RI type.
MIT type.
SSL payment.
Two-phase payments. Including single or multiple completions.
With
tii = R, I, U
.Using 3DS 1.0 authentication.
With
features = VERIFY
, where after checking the card data there is no financial authorization or it has been cancelled.If the Merchant uses V1 stored credentials.
API request
The request used to pay for an Industry Practice order is /industryPractice/paymentOrder.do.
Specifics and limitations
Each type of Industry Practice payment has its own conditions for successful implementation.
Industry Practice Incremental
- Execution is only possible on the same business day as the original transaction (the one the amount of which is to be incremented).
- Execution is possible by Merchants with the following MCCs:
- 3351-3500, 7512 Car Rental;
- 3501-3999, 7011 Lodging;
- 4111 Local and Suburban Commuter Passenger Transportation, including Ferries;
- 4112 Passenger Railways;
- 4121 Taxicabs and Limousines (Card-Absent Environment only);
- 4131 Bus Lines;
- 4411 Steamship and Cruise Lines;
- 5411 Grocery Stores;
- 5552 Electric Vehicle Charging;
- 5812 Eating Places and Restaurants;
- 5813 Drinking Places (Alcoholic Beverages), Bars, Taverns, Cocktail Lounges, Nightclubs and Discotheques;
- 7033 Trailer Parks and Campgrounds;
- 7394 Equipment, Tool, Furniture and Appliance Rental;
- 7513 Truck Rentals;
- 7519 Motor Home and Recreational Vehicle Rentals;
- 7523 Parking Lots, Parking Meters and Garages;
- 7996 Amusement Parks, Carnivals, Circuses, Fortune Tellers;
- 7999 Recreation Services.
- The number of Incremental operations performed is not limited.
Industry Practice Resubmission
- If wallets or other tokenized payment are used in the original transaction, the Resubmission operation can be completed within 14 days from the date of initial authorization.
- If wallets regular payment is used in the original transaction, the Resubmission operation can be completed within 30 days from the date of initial authorization.
- The amount of the Resubmission transaction must be exactly the same as the amount of the original order.
- Only one Resubmission operation can be successfully completed.
Industry Practice Delayed Charges
- Delayed Charges operations can be completed within 90 days from the date of initial authorization.
- The number of Delayed Charges operations is unlimited.
Industry Practice Reauthorization
- In the case of using wallets or other tokenized payment in the original transaction, Reauthorization of the transaction is possible within 90 days from the date of the initial pre-authorization, with the exception of Merchants who can send a re-authorization within 120 days from the date of the initial pre-authorization (see the list of MCCs below),:
- 3351–3500 Car Rental Agencies;
- 3501–3999 Lodging Hotels, Motels, Resorts;
- 4411 Steamship and Cruise Lines;
- 4457 Boat Rentals and Leasing;
- 7011 Hotels, Motels, Resorts, Central Reservations Services (Not Elsewhere Classified);
- 7033 Trailer Parks and Campgrounds;
- 7394 Equipment, Tool, Furniture, and Appliance Rental and Leasing;
- 7512 Car Rental Agencies (Not Elsewhere Classified);
- 7513 Truck and Utility Trailer Rentals;
- 7519 Motor Home and Recreational Vehicle Rentals;
- 7999 Recreation Services (Not Elsewhere Classified).
- If you use regular payment during the original transaction, Reauthorization of the transaction is possible within 180 days from the date of initial authorization.
- The amount of the Reauthorization transaction must be exactly the same as the amount of the original order.
- Only one Reauthorization operation can be successfully completed.
Industry Practice No Show
- Execution is possible within one calendar year from the date of initial authorization.
- The number of No Show operations performed is not limited.
Reversals and refunds
For Industry Practice operations with the Incremental type:
- The reversal amount cannot exceed the total amount of the original transaction and all associated Incremental transactions.
- The refund amount cannot exceed the total amount of the original transaction and all associated Incremental transactions.
- If a partial reversal has already been made earlier with the associated Inremental payment(s), then the amount of the partial refund cannot exceed the
amount
of the original payment, summed up with theamount
of all related Inremental operations, and with the deduction of theamount
of partial reversal(s). - Reversals and refunds for Incremental payments can only be made on the original order. Performing reversals and refunds for specific Incremental payments is prohibited.
Carrying out reversals and refunds for Industry Practice operations with a type other than Incremental does is the same as for all standard operations – they are performed separately, under their respective orders.
Cardholder verification
Cardholer's card account can be verified without debiting any funds from it. To do this, pass the VERIFY
value in the features
block of an order registration or payment request.
When the VERIFY
feature is used, the payment card will be verified to make sure it is used by its legitimate owner. If 3-D Secure is available for the card, then 3-D Secure verification will be performed. The amount
parameter of the verification request can be 0. Even if some amount is passed in the request, no charge will be made. After a successful registration, order status is changed to REVERSED
.
If the VERIFY
feature is passed together with the clientId
parameter, it can be used to store a credential without payment. Read more in the Stored-credential transactions section.
Open ID token
You can generate an Open ID token for a merchant. This token can be used instead of credentials for identifying a merchant in the Payment Gateway.
Open ID token is not private, it can be published or embedded into a web page. For example, it can be used when an order is registered directly from browser. In this case, there is no risk of personal data disclosure, because the token can be interpreted by the Payment Gateway only.
You can use Open ID token for merchant authentication when sending API requests to the Payment Gateway.
To do it, pass the Open ID token in the token
parameter instead of passing userName
and password
. You can use the token
parameter in the following requests:
To generate an Open ID token, go to the Personal Area, select Settings on the side menu, and then select General Settings in the Merchant block. Click Generate next to the Open Id token field. If you alredy know your token, you may enter in manually. Read more here.
Redirect to ACS
Regular redirect
If a payment is made with 3-D Secure, merchants must redirect their customers to ACS using the address specified in the acsUrl
parameter received from the payment response. The request body must be MD=mdorder&PaReq=paReq&TermUrl=termUrl
, where:
-
MD
- unique order ID in the payment gateway; -
PaReq
- thepaReq
parameter received from the payment response. It is the message that should be sent to ACS together with redirect and contains the data necessary for authentication; -
TermUrl
- thetermUrl
parameter received from the payment response. It is the URL to which ACS redirects the cardholder after authentication.
It must be a POST request (not GET).
Depending on the configuration agreed with your bank, the customer after ACS authentication will be redirected either to the store or to the payment gateway.
Example of a POST request for regular redirect:
<html>
<head><title>ACS Redirect</title></head>
<body onload="document.forms['acs'].submit()">
ACS Redirect
<form id="acs" method="post" action="[result.acsUrl]">
<input type="hidden" id="MD" name="MD" value="[MD]"/>
<input type="hidden" id="PaReq" name="PaReq" value="[result.PaReq]"/>
<input type="hidden" id="TermUrl" name="TermUrl" value="[result.TermUrl]"/>
</form>
</body>
</html>
Simplified redirect
Alternatively, the online store can use the gateway acsRedirect method, which will perform the same cardholder redirect to the issuer ACS.
Payment with your own 3DS Server
3DS Server is a component of 3D Secure technologies that may be implemented in the payment gateway or on your side. If you have your own 3DS Server, you can use it for 3D Secure authorization on your side, and then just indicate the fact of such authorization in API requests. To enable this feature, contact our support team.
If you use your own 3DS Server, then in every payment request - paymentOrder, paymentOrderBinding.do , or instantPayment.do - include the following additional parameters in the jsonParams
block: eci
, cavv
, xid
, threeDSProtocolVersion
, and authenticationTypeIndicator
. These parameters are described below.
eci
eci
parameter - Electronic commerce indicator (ECI) received from your 3-D Secure Server. It shows the security level ensured during payment. The DS server sets this parameter based on the authentication results and in accordance with the features of the merchant verification process.
ECI codes may differ depending on the payment system. The most commonly used ECI codes are given below:
Meaning | VISA | Mastercard |
---|---|---|
3DS authentication | 5 | 2 |
3DS authentication attempt | 6 | 1 |
SSL authentication (without 3DS) | 7 | 7/0 |
cavv, xid
If ECI value differs from the ones used for SSL authorizations, it is also necessary to pass the following parameters:
-
cavv
- cardholder authentication value; -
xid
- identifier of the 3DS authentication transaction of the cardholder on the 3DS server (ARes.dsTransID
value received from ACS).
threeDSProtocolVersion
Additionally, you can pass the threeDSProtocolVersion
parameter (version of 3DS protocol) in a payment request. It can take the following values:
-
2.1.0
- for 3DS 2 -
2.2.0
- for 3DS 2
If threeDSProtocolVersion
is not passed in the request, then its default value is assumed to be 2.1.0
- for 3DS 2.
authenticationTypeIndicator
authenticationTypeIndicator
parameter (payment authentication type) is required for payment via your own 3DS Server with 3DS 2.
For payments with SSL, this parameter is optional and is defined automatically depending on ECI value.
Value | Description | Required/Automatically defined |
---|---|---|
0 | SSL SSL authentication |
ECI = 07 |
3 | THREE_DS2_FULL Strong customer authentication (SCA) |
Required for 3DS 2 |
4 | THREE_DS2_FRICTIONLESS Risk based authentication(RBA) |
Required for 3DS 2 |
5 | THREE_DS2_ATTEMPT 3DS 2 authentication attempt |
Required for 3DS 2 |
6 | THREE_DS2_EXEMPTION_GRANTED 3DS 2 excemption granted |
Required for 3DS 2 |
7 | THREE_DS2_3RI 3RI authentication with 3DS 2 |
Required for 3RI |
8 | THREE_DS2_3RI_ATTEMPT 3RI authentication attempt with 3DS 2 |
Required for 3RI |
Request example
curl --request POST \\
--url https://uat.dskbank.bg/payment/rest/paymentorder.do \\
--header 'content-type: application/x-www-form-urlencoded' \\
--data userName=test_user \\
--data password=test_user_password \\
--data MDORDER=0140dda0-71ed-7706-a61f-36bd00a7d8c0 \\
--data '$PAN=4000001111111118' \\
--data '$CVC=123' \\
--data YYYY=2030 \\
--data MM=12 \\
--data 'TEXT=TEST CARDHOLDER' \\
--data language=en \\
--data 'jsonParams={
"eci": "02",
"cavv": "AkZO5XQAA0rhBxoaufa+MAABAAA=",
"xid": "5010857f-8d3f-74e1-9c5a-54a000cc4110",
"threeDSProtocolVersion": "2.2.0",
"authenticationTypeIndicator": "5"
}'
If you use your own 3DS Server, the corresponding payment response does not contain 3D Secure-related parameters, such as redirect
, termUrl
, acsUrl
, and paReq
.
Response example
{
"redirect": "https://uat.dskbank.bg/payment/merchants/temp/finish.html?orderId=01493844-d4d3-703f-9f7e-a73900a7d8c0&lang=en",
"info": "Your order is proceeded, redirecting...",
"errorCode": 0
}
3-D Secure authorization
What is 3-D Secure
3-D Secure (also called 3DS) is a technical standard created by Visa and MasterCard that allows you to perform additional authorization of the cardholder on the side of the issuing bank. In order to complete an online purchase, the cardholder is asked to provide proof of identity by entering a unique password, an SMS code, or a temporary PIN.
The term 3DS stands for 3 Domain Server. This name is used because every 3-D Secure transaction involves three parties:
- Acquirer domain. It acts as a 3DS requestor – initiator of authorization process.
- Issuer domain. It includes ACS (Access Control Server) that ensures validation of the payer by the issuing bank.
- Interoperability domain. It acts as a connector between first two domains. Usually, it is a payment system.
Protocol versions
Payment gateway supports 3-D Secure authorization to protect you and your clients from the threat of payment fraud.
For browser-base transactions, we use 3-D Secure v2 (also called 3DS2) – the updated version of 3-D Secure protocol that allows better information exchange between the three parties of the transaction. The 3DSv2 authentication Protocol, depending on the issuing Bank's ACS settings, allows you to perform authentication check without the customer's participation (Frictionless authentication). In this case, the customer will not be required to perform authentication actions, such as entering a one-time password or performing additional authentication checking actions.
Integration scenarios
If the payment page is on the payment gateway side, the merchant does not need any additional actions and can use the standard payment gateway API for integration.
If the payment page is on the merchant's side, when using 3-D Secure authorization, the merchant must send a number of additional API requests to the payment gateway.
See the integration schemes.
3RI authorization
3RI is a type of 3DS 2 authorization that is initiated by the merchant without requesting a cardholder to confirm payment. Actually, 3RI payment is a MIT payment with tii=R
or tii=I
, i.e. recurrent payment or installment payment (see Transaction types for details) with frictionless 3DS 2 authorization.
3RI recurrent or installment payment is possible only if the initial transaction that stores the credental was performed with 3DS 2 authorization.
If any of the following conditions takes place:
- initial transaction was performed not via the Payment Gateway,
- initial transaction was performed with your own 3DS Server,
- initial transaction was performed without storing credentials,
then you should pass the following additional parameters in jsonParams
block:
Required | Name | Type | Description |
---|---|---|---|
Mandatory | initThreeDSReqPriorAuthData | String | Identifier of the initial transaction in DS (dsTransId). Example: "d5bf7963-e94e-718d-8777-2943091ceaa0". |
Mandatory | initThreeDSReqPriorAuthMethod | String | Authentication method used in initial transaction. Example: "01". |
Mandatory | initThreeDSReqPriorAuthTimestamp | String | Data and time (UTC) of the initial transaction. Example: "22202405140811". |
Mandatory | initThreeDSReqPriorRef | String | Additional information for ACS (acsTranId). Example: "d5bf7963-e94e-718d-8777-2943091ceaa0". |
Conditional | installments | String | Maximum number of allowed authorizations for installment payments. Is required for installment 3RI payment. |
Conditional | totalInstallmentAmount | String | Total sum of all installment payments. Is required for installment 3RI payment. |
Mandatory | recurringExpiry | String | The date after which authorizations are not allowed, in YYYYMMDD format. Is required for recurrent or installment 3RI payment. |
Mandatory | recurringFrequency | String | Minimum number of days between authorizations. Is required for recurrent or installment 3RI payment. |
